a) Dual wall insulation,electron beam cross-linked
b) Excellent resistance to UV,water,ozone,fluids,salt,general weathering
c) Excellent resistance to abrasion
d) Halogen free,flame retardant,low toxicity
e) Excellent flexibility and stripping performance
f) High current carrying capacity
g) Sheath colour: black or red
h) 5-year factory warranty from date of delivery
i) Designed life:25 years
j)Wire: Class 5,Tin bed
k) Insulation material :XLPE
l) Smallest permissible bending radius: 5XD
m)Temperature range: -40℃~90℃
n)Flame test according to Din EN 50265-2-1 UL1571(VW-1)
1. Executive Standard:
PV Solar cable ( Photovoltaic Solar cable) refers to original draft made out by PV system cable work team of German Standard Committee( Technical Specification 2PFG1169/08.2007 in Rhein TUV Company German).
2. No-Halogen PV Solar Cable Type:
PV1-F: Tinned Flexible Copper Wire No-Haogen PO Insulation & Sheath Photovoltaic System Cable.

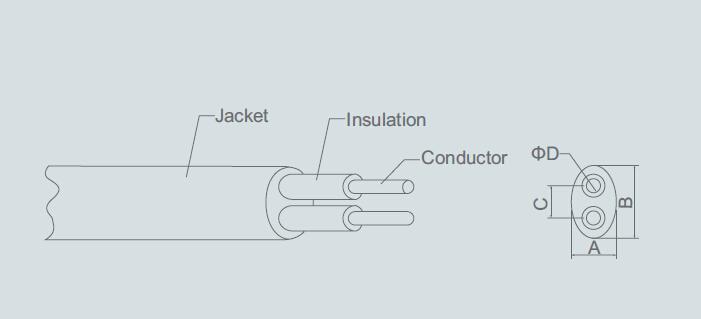

| Type | Cross section | Strand design |
Conductor diameter |
Conductor resistance |
Outer diameter A×B |
Rated voltage | Rated current |
| mm2 | NO.×Φ(mm) | mm | Ω/km | mm | V AC/DC | A | |
| PV-2×1.5mm2 | 1.5 | 30×Φ0.25 | 1.6 | 13.9 | 5.80×9.30 | 1000/1800 | 20 |
| PV-2×2.5mm2 | 2.5 | 50×Φ0.25 | 2 | 8.06 | 6.20×9.90 | 1000/1800 | 30 |
| PV-2×4.0mm2 | 4 | 56×Φ0.3 | 2.6 | 4.97 | 6.9×11.30 | 1000/1800 | 50 |
| Wire | Class 5,tinned | ||||||
| Insulation material | XLPE | ||||||
| Double insulated | |||||||
| Halogen-free | |||||||
| High resistance against oils,greases,oxygen and ozone | |||||||
| Microbe-resistant | |||||||
| UV resistant | |||||||
| High wear and abrasion resistance | |||||||
| Flam test according to | DIN EN 50265-2-1 UL1571(VW-1) | ||||||
| Smallest permissible bending radius | 5×D | ||||||
| Temperature range | -40℃～+90℃ | ||||||
| Colours | Black/red | ||||||
