Solar Connector
Place of Origin: Zhejiang, China (Mainland) Brand Name: suntree/oem Model Number: solar Rated Current: 20A Withstanding Voltage: 1000V DC Contact Resistance: ≤0.5mΩ Protection Class: Class II Temperature Range: TPE, black
MC3 soalr connector
Description
Quick Details
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: suntree/oem
- Model Number: mc3
- Rated Current: 20A
- Withstanding Voltage: 1000V DC
- Contact Resistance: ≤0.5mΩ
- Protection Class: Class II
- Temperature Range: TPE, black
- Contact Material: Copper, Tin plated
- Flame Class: UL94-VO or UL95-5VA
- Frequency: 50/60HZ
Application
Simple on-site processing.
Accommodates PV cable withdifferent insulation diameters.
Mating safety provided by keyed housings.
Multiple plugging and unplugging cycles .
High current carrying capacity.
TUV and UL approved.
The Photovoltaic connector MC3 adopted of drum-shaped shrapnel Plug-way and unique fastening technology, It is easy to disassemble, simple and quick to connect ,even more safe and secure. The male and female head swap with a self-locking, electrical connections fully reliable, open and close freely. The material has excellent resistance to high temperature, fire protection, anti-aging and anti-UV properties, and meets the requirement of the outdoor long-term use under harsh environmental conditions. The features include excellent sealing performance, waterproof and dustproof rating up to IP67. It also has broad applicability to be inserted with the MC4 and match each other completely.

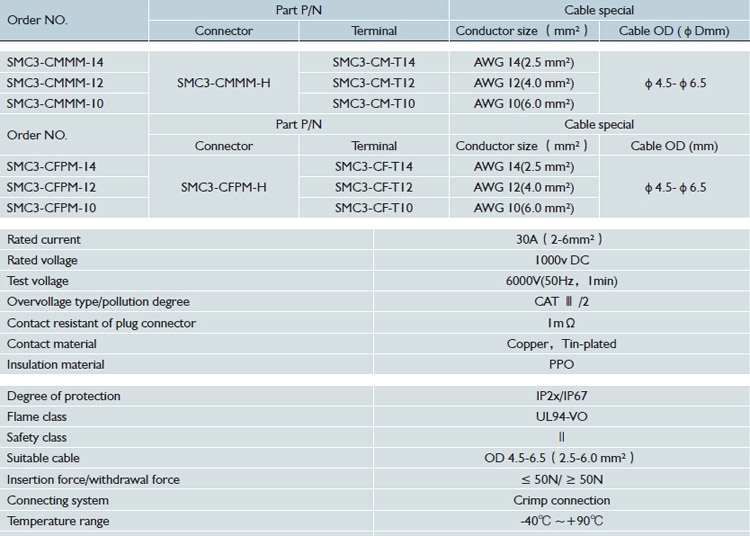

Specifications
